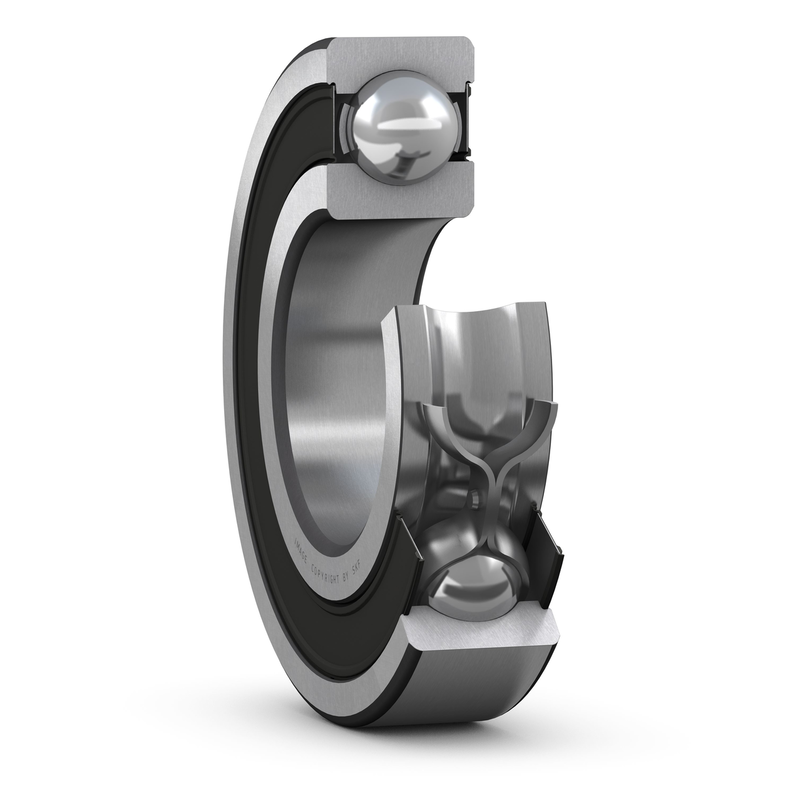

W 619/5-2RS1/Deep groove ball bearing/

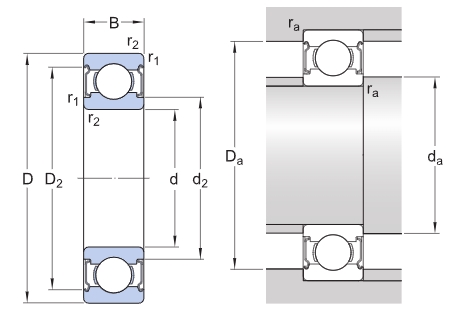

D2d2

Product model W 619/5-2RS1
d 5 mm
D 13 mm
B 4 mm
Limiting speed 32000 r/min
d2 ≈6.6 mm
D2 ≈11.2 mm
D3 0
Da max.11.4 mm
Chamfer size (r1,2) min.0.2 mm
da min.6.3 mm/max6.5 mm
ra max.0.2 mm
Pu 0.014 kN
Reference speed 0
kr 0.025
f0 10.5
Radial runout National Standard
Dimensional tolerance National Standard
