D/W R2-6-2Z/Deep groove ball bearing/


Product model D/W R2-6-2Z

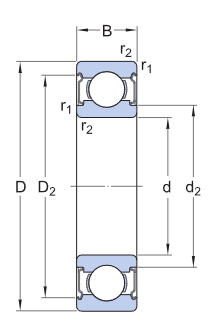

d 3.175 mm
D 9.525 mm
B 3.571 mm
Limiting speed 63000 r/min
d1 0
d2 ≈4.6 mm
D2 ≈8.2 mm
Chamfer size (r1,2) min.0.15 mm

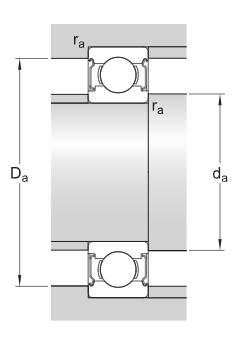

da max.4.5 mm
Da max.8.3 mm
ra max.0.15 mm
pu 0.005 kN
Reference speed 130 000 r/min
kr 0.025
f0 6.5
Radial runout National Standard
Dimensional tolerance National Standard
