W 619/6 X-2RS1/Deep groove ball bearing/

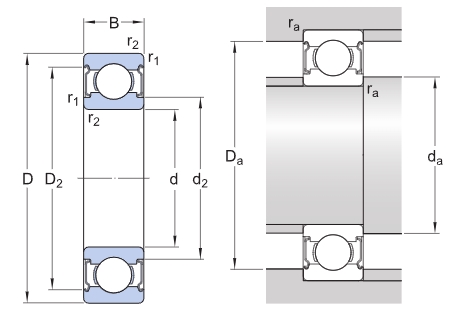

D2d2

Product model W 619/6 X-2RS1
d 6 mm
D 16 mm
B 5 mm
Limiting speed 36000 r/min
d1 ≈7.5 mm
d2 ≈7.5 mm
凸缘直径(D2) ≈13 mm
Da max.14.4 mm
Chamfer size (r1,2) min.0.2 mm
da min.7.3 mm/max.7.4 mm
ra max.0.2 mm
Pu 0.011 kN
kr 0.025
f0 6.8
Radial runout National Standard
Dimensional tolerance National Standard
