W 635 R-2RS1/Deep groove ball bearing/

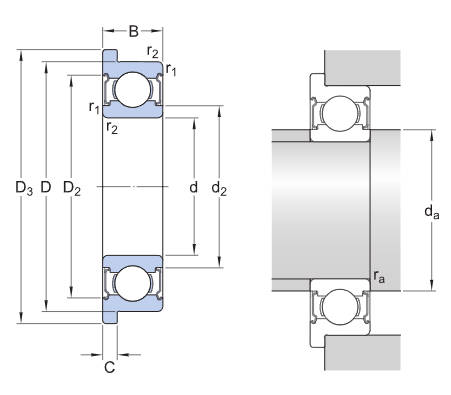

D3d2

Product model W 635 R-2RS1
d 5 mm
D 19 mm
B 6 mm
Limiting speed 24000 r/min
d2 ≈8.5 mm
D2 ≈16.5 mm
D3 22 mm
C 1.5 mm
Chamfer size (r1,2) min.0.3 mm
da min.7 mm/max8.4 mm
ra max.0.3 mm
Pu 0.038 kN
kr 0.035
f0 12.1
Radial runout National Standard
Dimensional tolerance National Standard
