W 628/5 R-2Z/Deep groove ball bearing/

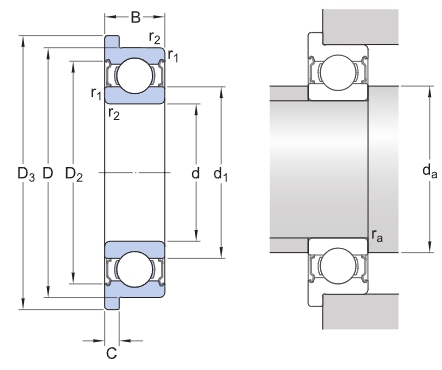

D3d1

Product model W 628/5 R-2Z
d 5 mm
D 11 mm
B 4 mm
Limiting speed 60000 r/min
d1 ≈6.81 mm
D2 ≈9.9 mm
D3 12.6 mm
C 0.8 mm
Chamfer size (r1,2) min.0.15 mm
da min.6.2 mm/max.6.7 mm
ra max.0.15 mm
Pu 0.006 kN
Reference speed 120 000 r/min
kr 0.02
f0 7.1
Radial runout National Standard
Dimensional tolerance National Standard
