W 634/Deep groove ball bearing/

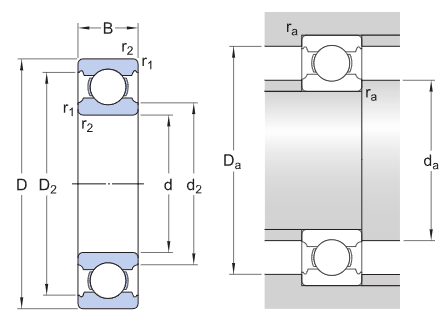

Product model W 634
d 4 mm
D 16 mm
B 5 mm
Limiting speed 63000 r/min
d2 ≈6.7 mm
D2 ≈13 mm
Chamfer size (r1,2) min.0.3 mm
da min.6 mm
Da max.14 mm
ra max.0.3 mm
Pu 0.011 kN
Reference speed 100 000 r/min
kr 0.035
f0 6.8
Radial runout National Standard
Dimensional tolerance National Standard
